      Craig R. 76 Bronco

int3
 int2  ext2

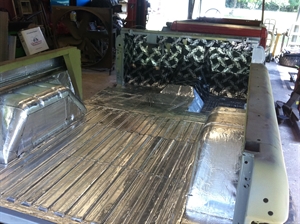

ext4  ext5  int13

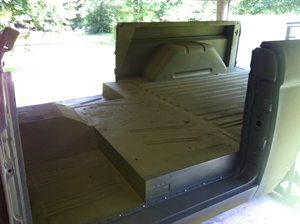

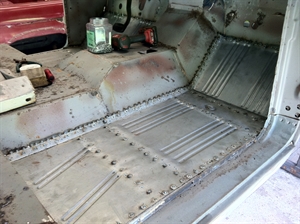

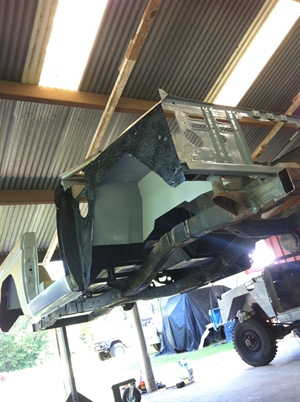

      Starting off with a great body! r/r'd floors and rockers, but overall great shape!! etching primer and epoxy in the fender wells. Added Dynamat to complete interior then rhino lined on top of it!! talk about a sound solid rig!!

chassis2  chassis1

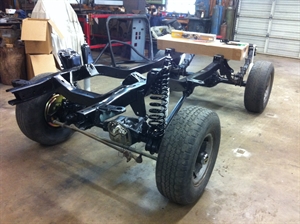

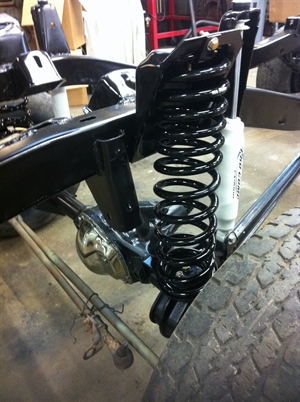

Chassis was blasted and epoxied, new 3.5" suspension, 4:11 gears w/T-locs,

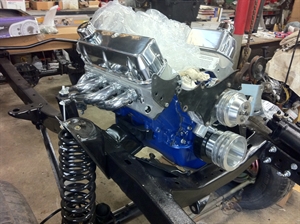

eng2  eng3  eng5
408 stroker motor from Tristar engines, awesome motor and awesome people to deal with!! a built AOD trans, AA adapter and Dana 20 t-case, Fast fuel injection to boot!!!
ext18  eng6
carefully dropped painted the body on!! then, adding MSD, pwr brakes, Wilwood M/C, Vintage air A/C, Centec harness.... a ton of wiring

cage1  cage2
fab'd up a pretty cool cage and test fitted

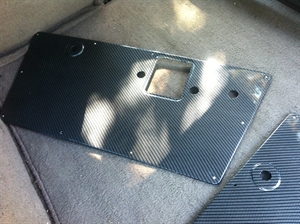

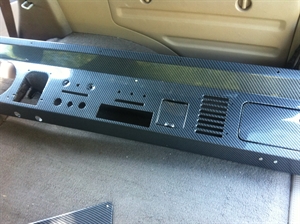

int6  int5
Craig wanted the dash and door panels carbon fiber, they came out really nice!! I had a local guy (Baton Rouge) do the hydrodipping, he really did a great job!
ext7  ext9 tank1
got the cage painted and installed, along with the dash and seats, she's comin along now!

chassis3  chassis4
added some necessary bling underneath

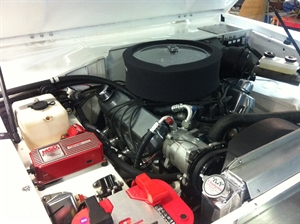

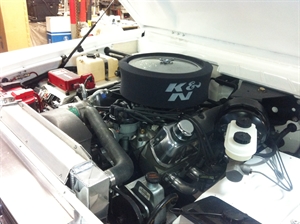

eng12  eng11
tidying up the engine comp, time to start!!
 eng9

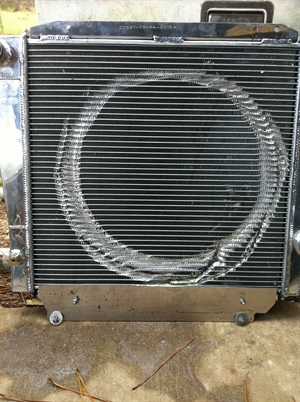

well... a loose shroud is all it took......at least thats all the damage...

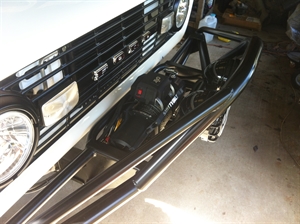

ext8  ext12  ext14

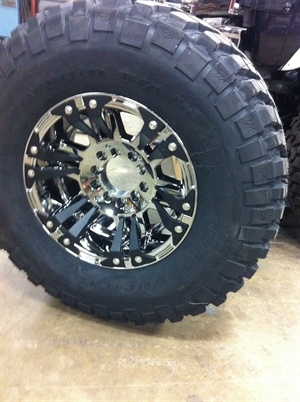

the wheels we chose were 17x9 KMC with 35/12.5/17 BFG K2's, saweeet... added DSF front bumper and Smittybuilt wireless winch w. syn rope ande some KC lights!! and custom DSF nerf bars.

int9  int11  int15
int14  int8
finishing out the interior, Corbeau front and rear seats, Dakota digital dash, Ididit tilt column,
led lighting, custom DSF speaker enclosures, gotta have the fire ext in every rig.., polished ss sill plates
custom seat mounts,

ext13  ext15  ext16
ext17  ext6

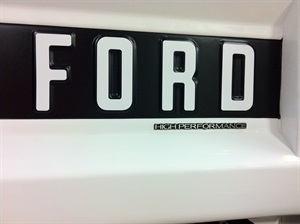

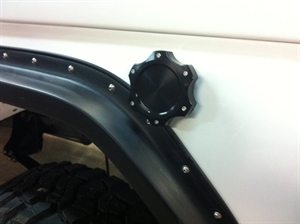

some very cool added bling!! plaques and do dads, man, that makes it!!!! custom DSF rear bumper and aluminum fuel tank.

ext11  ext10

mail    EMAIL ME (JD) IF YOU'D LIKE MORE INFO!
