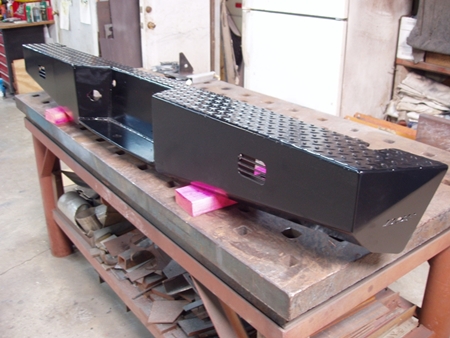

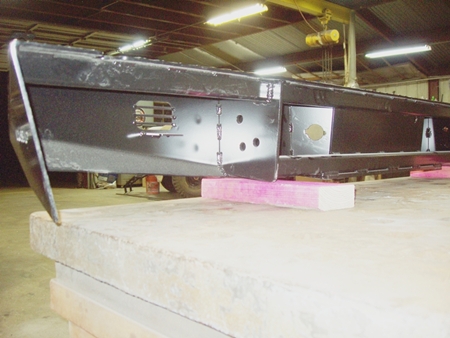

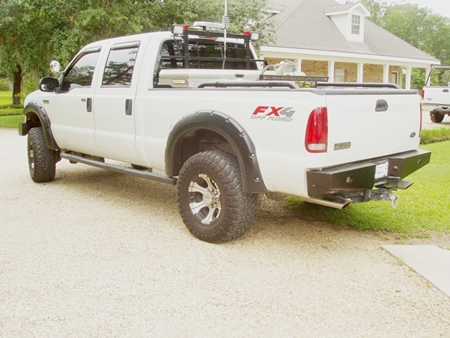

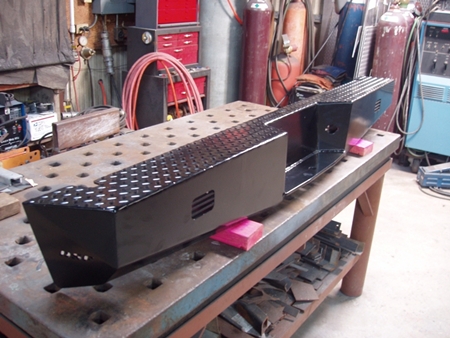

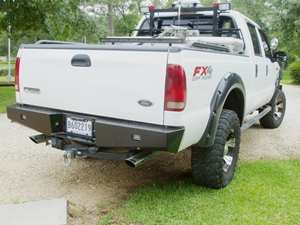

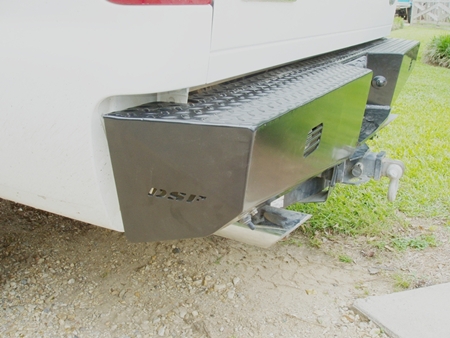

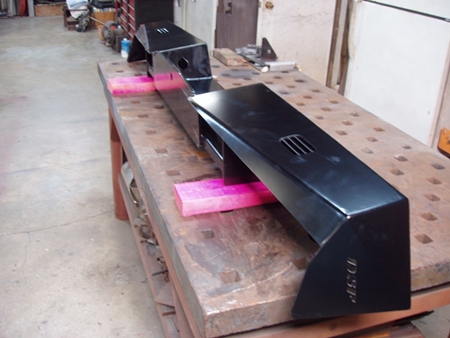

1999-2006 FORD Superduty rear bumper kit
3/16" thk. tread plate
rear, sides and center plates
3/16" A-36 plate (rear sides formed for strength and looks)
bottom hitch plate
3/8" thk A-36 plate with 1" hole for ball and (2) 3/4" holes for safety chains or shackles
main mounting plates
1/4" A-36 plate, cnc cut for mounting holes and horizontal support
upper horizontal cross support
1.5" x 3/16" thk. square tube (runs completely across fron right side to left side)
lower horizontal tie in support
1-1/2" x 3/16" thk. square tube (runs from main frame mount to main frame mount and welds to lower hitch plate
LIGHT TABS AND
3/16" DIA. BAR MATERIAL FOR BACK UP LIGHTS
* FEATURES LIGHT CUT OUTS IN REAR PLATES FOR BACK UP

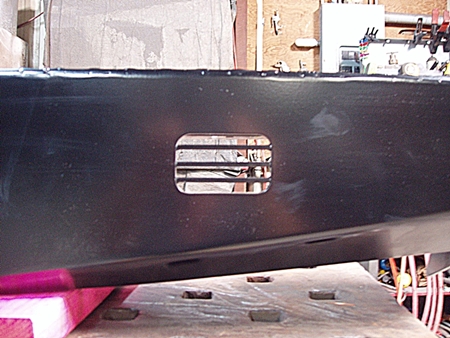

* CNC LIGHT CUT OUTS FOR USE OF FACTORY LICENSE PLATE LIGHTING
* ACCESS HOLE FOR SPARE TIRE TOOL
* USES FACTORY BUMPER MOUNTS AND BOLTS
Complete kit ready to fit and weld. All parts are cnc cut out and test fit before shipment.
Average fabrication time is about 3hrs to assemble and weld. Finishing time will depend on your welding skills and quality.
You will need to drill out for your license plate bolts or plastic inserts, cut and fit the bars for the back up light holes (if desired). Basic assembly/ fit instructions are included.
complete kit consisting of
17 pcs weighing approximately 85 lbs
EMAIL ME (JD) IF YOU'D LIKE MORE INFO!
