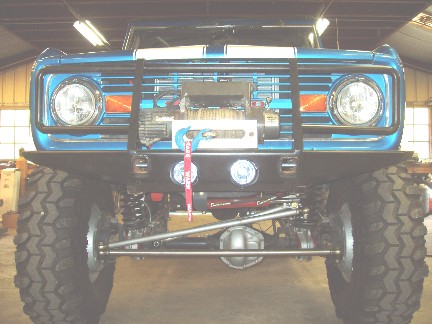

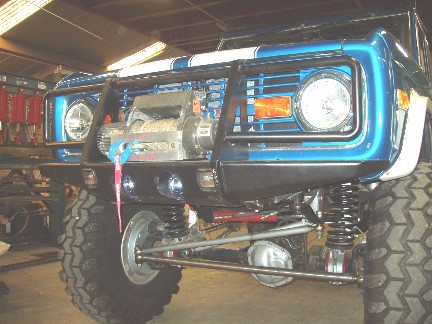

I designed this front bumper to help ease the front end lines of the Bronco. It seems to do the job quite well, while being tucked in for approach angles. Built from 3/16" steel (cold formed) for strength with (2) receiver tubes and dual light buckets that are frenched into the angled lower steel plate. It will fit any body lift by ordering the correct mounts.( 0"-1" B/L mount or 2"-3" B/L mount )The winch mounting area is 24"w x 10"d x 12"h.

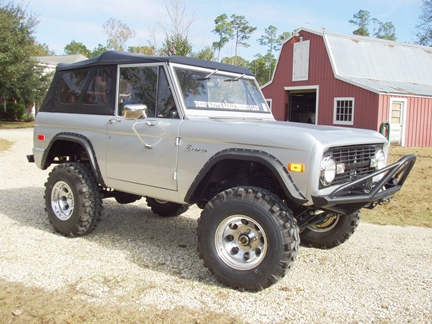

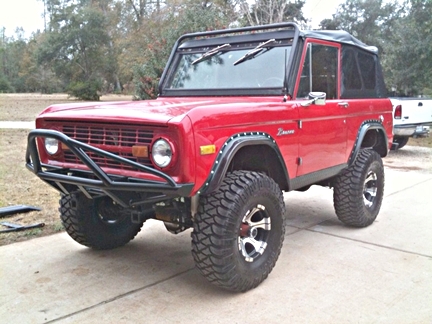

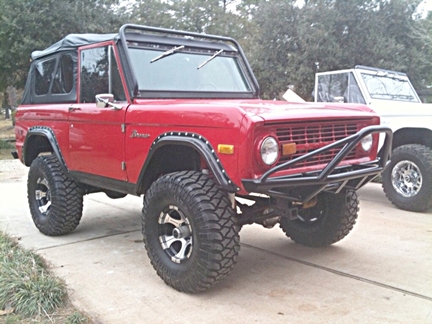

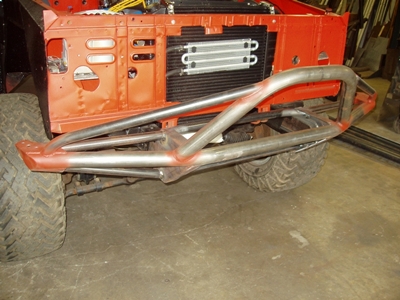

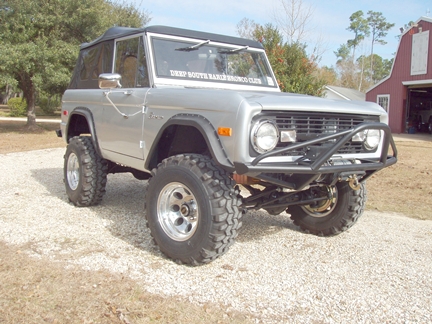

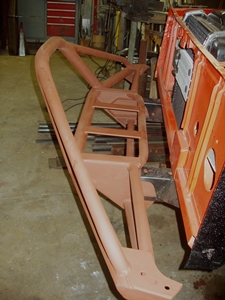

front prerunner - 2"x .120 wall tube, hi or lo winch mount, made to fit specified body lift dimensions. (0" body lift, 1" body lift, 2" b/l, 3" b/l)comes bare steel

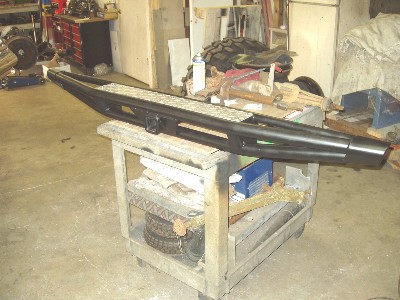

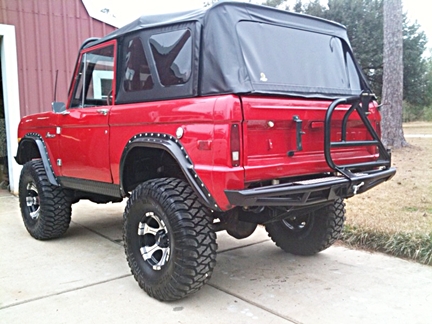

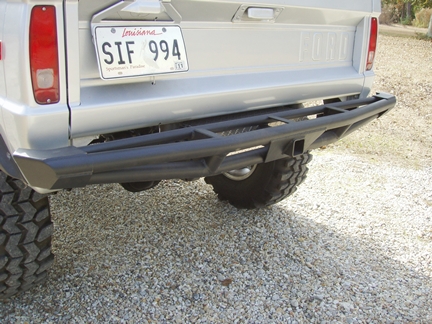

The rear prerunner bumper fab'd out of 2"x .120 tube and 1-1/4" x .120 tube with receiver tube and welded steel end plates. (being trianglated adds major strength). Comes with 1/8" aluminum tread plate center also. It will fit any body lift when ordered with the correct mounts (0"-1"B/L mount or 2"-3" B/L mount)

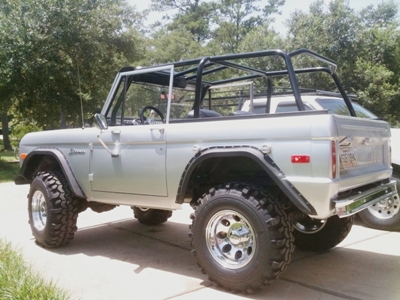

  Family style cages 2"x.120 DOM,1-3/4"X.120 front cross bar, spreader bars with kick and rear croass bar. has tabs for windshield support, formed main bar foot plate w/ 6 bolts ea. for added structural support (no body mount under)formed rear plate with added bolt in side for added structural support also.

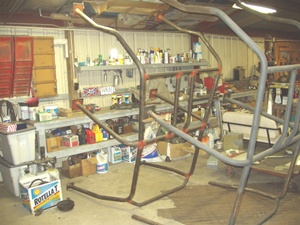

   family cages

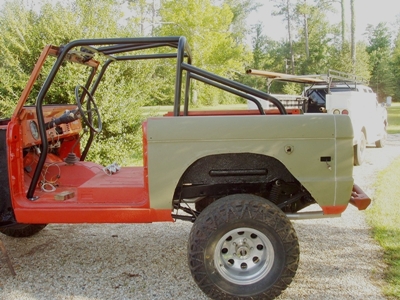

 sport style cage, exact same front design, just uses shorter rear legs. $750
      standard main hoop with sport rear legs

EMAIL ME (JD) IF YOU'D LIKE MORE INFO!
