            Being a Bronco owner since 19.... well a long time...  I started fabricating anything I could. Here are some of the items I build for sale and some items I've done in the past years. Of course, I try to blend function and looks into most all of them, so look around and let me know if you're interested in anything, JD

CUSTOM BUMPERS
PLATE STYLE
TUBE STYLE (PRERUNNER)

ROLL CAGES
FAMILY
SPORT
CUSTOM
FRAME TIE INS

MISC.
ROCK SKIS and kits, NERF BARS,

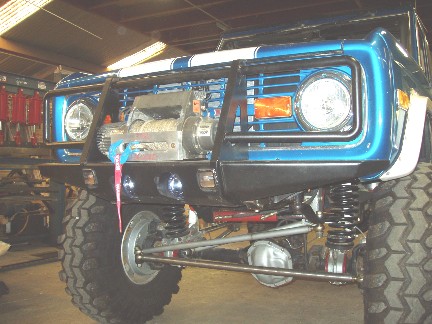

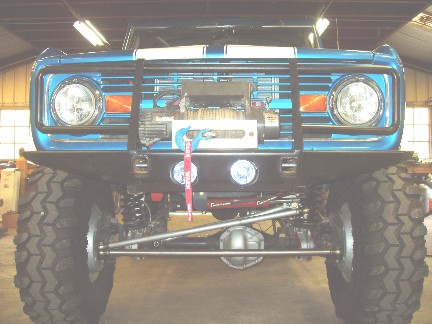

I designed this front bumper to help ease the front end lines of the Bronco. It seems to do the job quite well, while being tucked in for approach angles. Built from 3/16" steel (cold formed) for strength with (2) receiver tubes and dual light buckets that are frenched into the angled lower steel plate. It will fit any body lift by ordering the correct mounts.( 0"-1" B/L mount or 2"-3" B/L mount )The winch mounting area is 24"w x 10"d x 12"h.

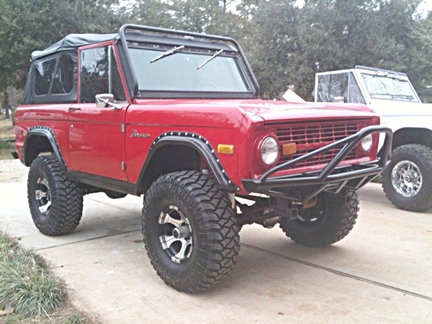

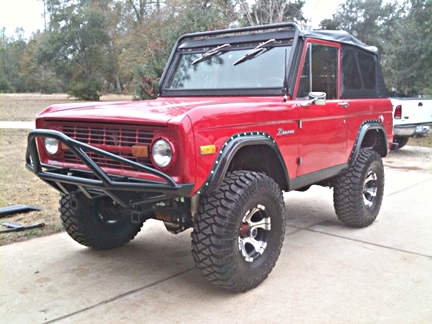

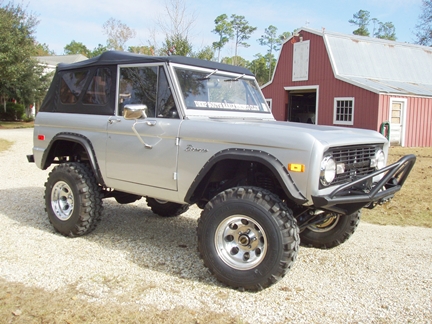

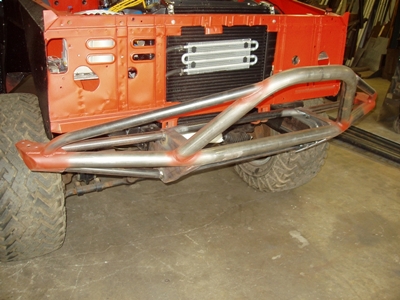

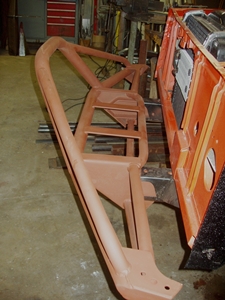

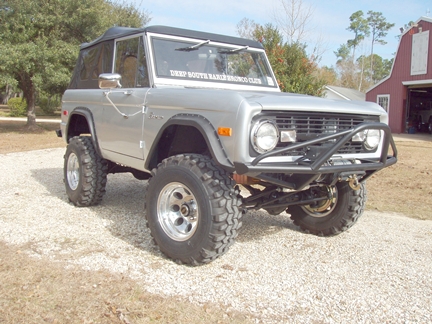

front prerunner - 2"x .120 wall tube, hi or lo winch mount, made to fit specified body lift dimensions. (0" body lift, 1" body lift, 2" b/l, 3" b/l)comes bare steel
                       complete bumper (bare) $550.00 + shipping

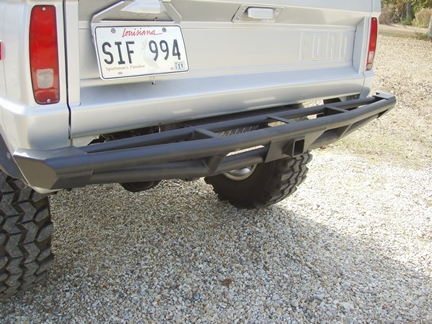

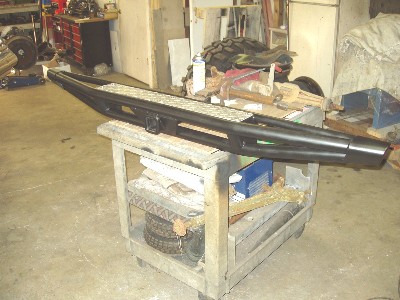

The rear prerunner bumper fab'd out of 2"x .120 tube and 1-1/4" x .120 tube with receiver tube and welded steel end plates. (being trianglated adds major strength). Comes with 1/8" aluminum tread plate center also. It will fit any body lift when ordered with the correct mounts (0"-1"B/L mount or 2"-3" B/L mount)
                    complete rear bumper with mounts (bare) $425 + shipping

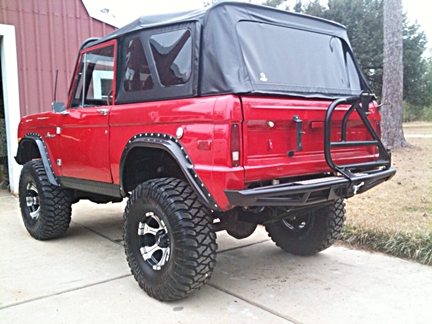

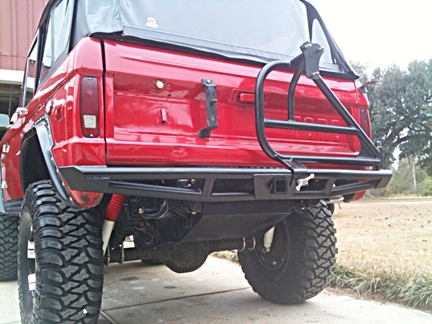

rear pre-runner with tire carrier made of 1-3/4" x .120 DOM utilizing a oil bronze bushing for added durability.designed for a 33x12.5x15 but will fit a 36x14.5x15. it comes with a standard 5 on 5.5 bolt pattern mount.
                $150 + shipping (when purchased with a rear prerunner bumper)

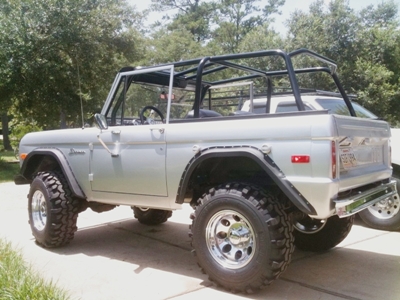

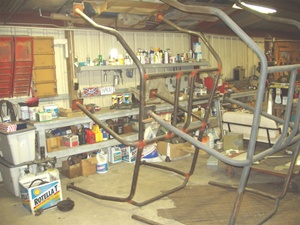

  Family style cages 2"x.120 DOM,1-3/4"X.120 front cross bar, spreader bars with kick and rear croass bar. has tabs for windshield support, formed main bar foot plate w/ 6 bolts ea. for added structural support (no body mount under)formed rear plate with added bolt in side for added structural support also. $750





   family cages

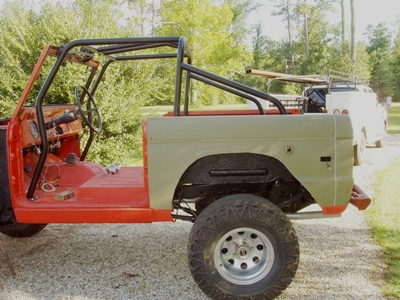

 sport style cage, exact same front design, just uses shorter rear legs. $700
      standard main hoop with sport rear legs $250












EMAIL ME (JD) IF YOU'D LIKE MORE INFO!
